Hibernate form based Application for inserting records

For inserting record into database we have to follow the following steps

Step 1: Create table from your database(i am using MYSQL )

for doing any operations in hibernate we have to  create table with primary key

create table employee(id int(10)  primary key(id),name varchar(30),address varchar(30));

now table is created as below

Step 2: create form with id,name,address fields

<form action="s">
    Employee Id:<input type="text" name="id"><br>
    Employee Name:<input type="text" name="name"><br>
    Employee Address:<input type="text" name="address"><br>
    <input type="submit" value="submit">
</form>

Step 3: create POJO class with table fields

package a;

public class Employee {

    int id;
    String name;
    String address;

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }


}

Step 4: generate hibernate configuration file (hibernate.cfg.xml)

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">

<hibernate-configuration>

  <session-factory>

    <property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>

    <property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>

    <property name="hibernate.connection.url">jdbc:mysql://localhost:3306/xxx</property>

    <property name="hibernate.connection.username">root</property>

    <property name="hibernate.connection.password">root</property>

    <mapping resource="a/Employee.hbm.xml"/>

  </session-factory>

</hibernate-configuration>

Step 5: create DAO class with inserting code as below

package a;

import java.io.IOException;

import java.io.PrintWriter;

import javax.servlet.RequestDispatcher;

import javax.servlet.ServletException;

import javax.servlet.http.HttpServlet;

import javax.servlet.http.HttpServletRequest;

import javax.servlet.http.HttpServletResponse;

import org.hibernate.Session;

import org.hibernate.SessionFactory;

import org.hibernate.Transaction;

import org.hibernate.cfg.Configuration;

public class EmployeeServlet extends HttpServlet {

    public void service(HttpServletRequest request, HttpServletResponse response)

            throws ServletException, IOException {

        response.setContentType("text/html;charset=UTF-8");

        PrintWriter out = response.getWriter();



        String s=request.getParameter("id");

        int i=Integer.parseInt(s);

        String s1=request.getParameter("name");

        String s2=request.getParameter("address");

 Configuration cfg=new Configuration();

cfg.configure();

SessionFactory sf=cfg.buildSessionFactory();

Session hsession=sf.openSession();

Transaction tx=hsession.beginTransaction();

Employee e=new Employee();

e.setId(i);

e.setName(s1);

e.setAddress(s2);

hsession.save(e);

tx.commit();

RequestDispatcher rd=request.getRequestDispatcher("success.jsp");

rd.include(request, response);

hsession.close();

sf.close();

}





    }

Step 6: provide hibernate reverse engineering wissard

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE hibernate-reverse-engineering PUBLIC "-//Hibernate/Hibernate Reverse Engineering DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-reverse-engineering-3.0.dtd">

<hibernate-reverse-engineering>

  <schema-selection match-catalog="xxx"/>

  <table-filter match-name="employee"/>

</hibernate-reverse-engineering>

Step 7: generate hibernate mapping file from database table

<?xml version="1.0"?>

<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"

"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">

<!-- Generated Oct 8, 2013 10:36:24 AM by Hibernate Tools 3.2.1.GA -->

<hibernate-mapping>

    <class name="a.Employee" table="employee" catalog="xxx">

        <id name="id" type="int">

            <column name="id" />

            <generator class="assigned" />

        </id>

        <property name="name" type="string">

            <column name="name" length="30" />

        </property>

        <property name="address" type="string">

            <column name="address" length="30" />

        </property>

    </class>

</hibernate-mapping>

Step 8: now run your application (here i am using NetBeans ID)

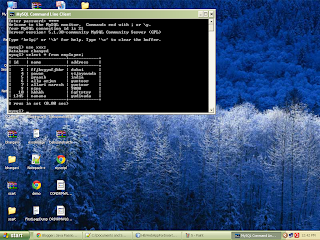

check table for output weather your entered details are entered into database or not
